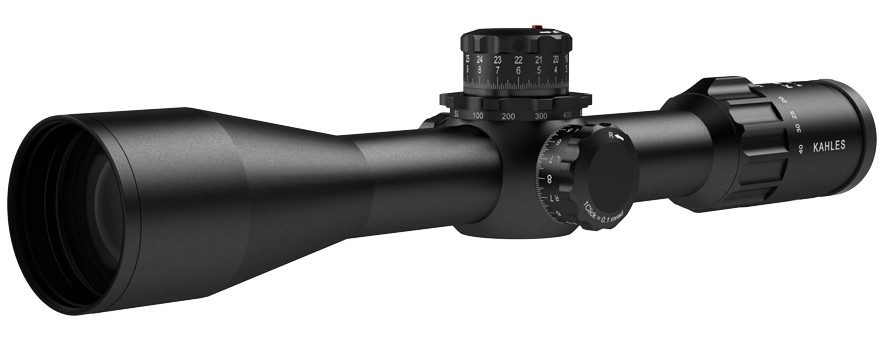

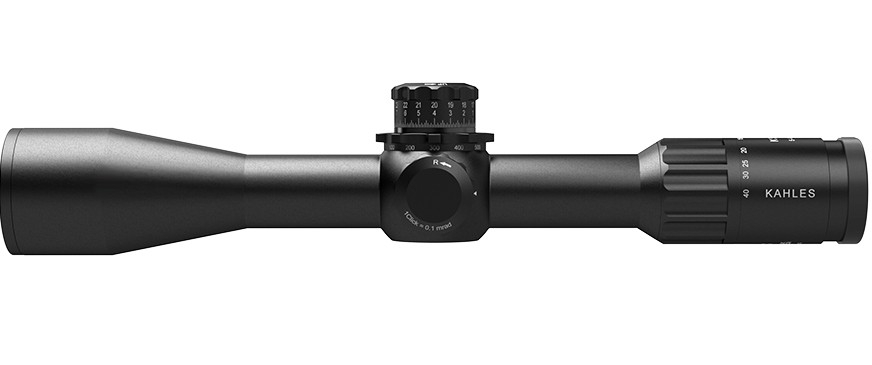

K 540i CCW 5-40x56 / SKMR4+ R

Ta kontakt hvis du ønsker andre alternativ på retikkel eller sidejustering.

NOK46 900,00 inkl. mva.
Ønskeliste
  • Produktinfo
  • Produktanmeldelser (0)
  • Revolutionary optical design with a 40% wider field of view*
  • Perfect optical performance with 8x zoom over the entire adjustment range
  • Exceptionally comfortable eyebox even at 40X magnification

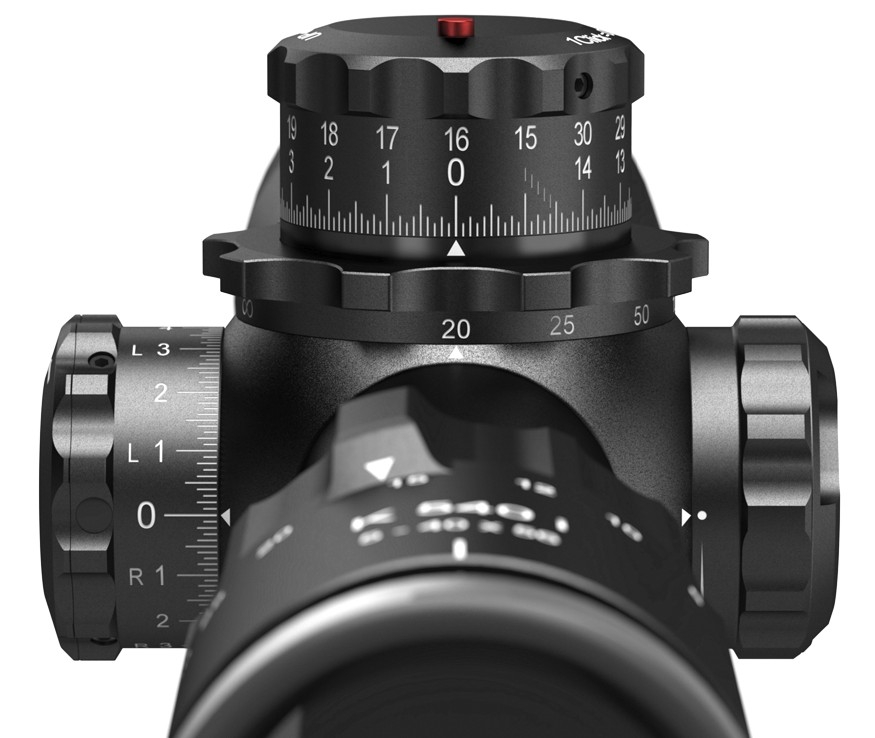

  • Windage adjustment available left or right with TWIST GUARD rotation protection
  • Patented parallax adjustment integrated in the elevation turret (20 m to ∞)
  • 160 clicks per rotation – absolutely reliable repeat accuracy and clearly defined clicks

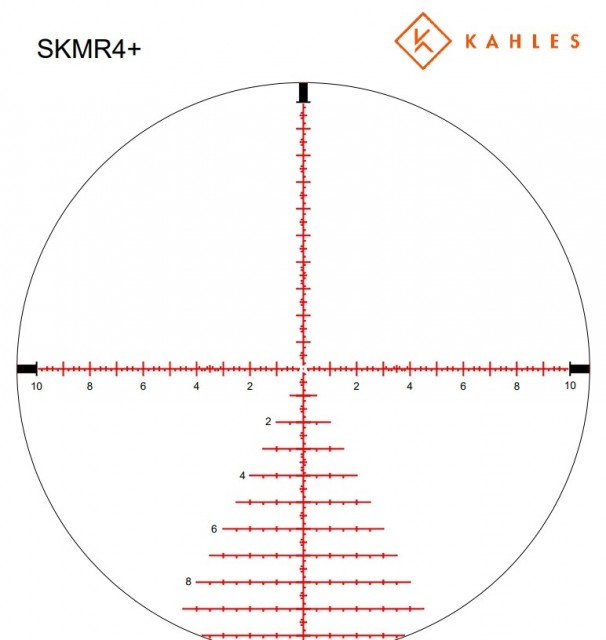

  • Precise illuminated reticle in 1st focal plane





Magnification:

 5-40x56i
Objective lens diameter: 56 mm
Exit pupil: 1,4 - 7,7 mm
Eye relief: 92 mm
Field of view: 10.2 - 1.3 m/100 m
Diopter compensation: +2 / -3 dpt
Twilight factor (DIN 58388): 13.9-47.3
Impact correction per click: .1 MRAD
Adjustment range (E/W): 2,9 / 1,2 m/100m
Parallax adjustment: 20 m - ∞
Tube diameter: 36 mm
Length: 408 mm
Weight: 1110 g
Focal plane: 1.
Illuminated: Yes
Warranty: 10 (2 electronics)
